Where is the include coming from?
The includes of the system map out the dependencies of the system, which files depend on which, which subsystem depends on which. When working with a system, it’s always useful to map out the dependencies before hand.
Here are some examples:

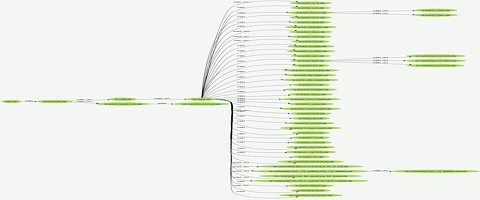

WordPress 2.2.1
http://wordpress.org
MediaWiki 1.12
http://www.mediawiki.org/
phpBB 3.0
http://www.phpbb.com/

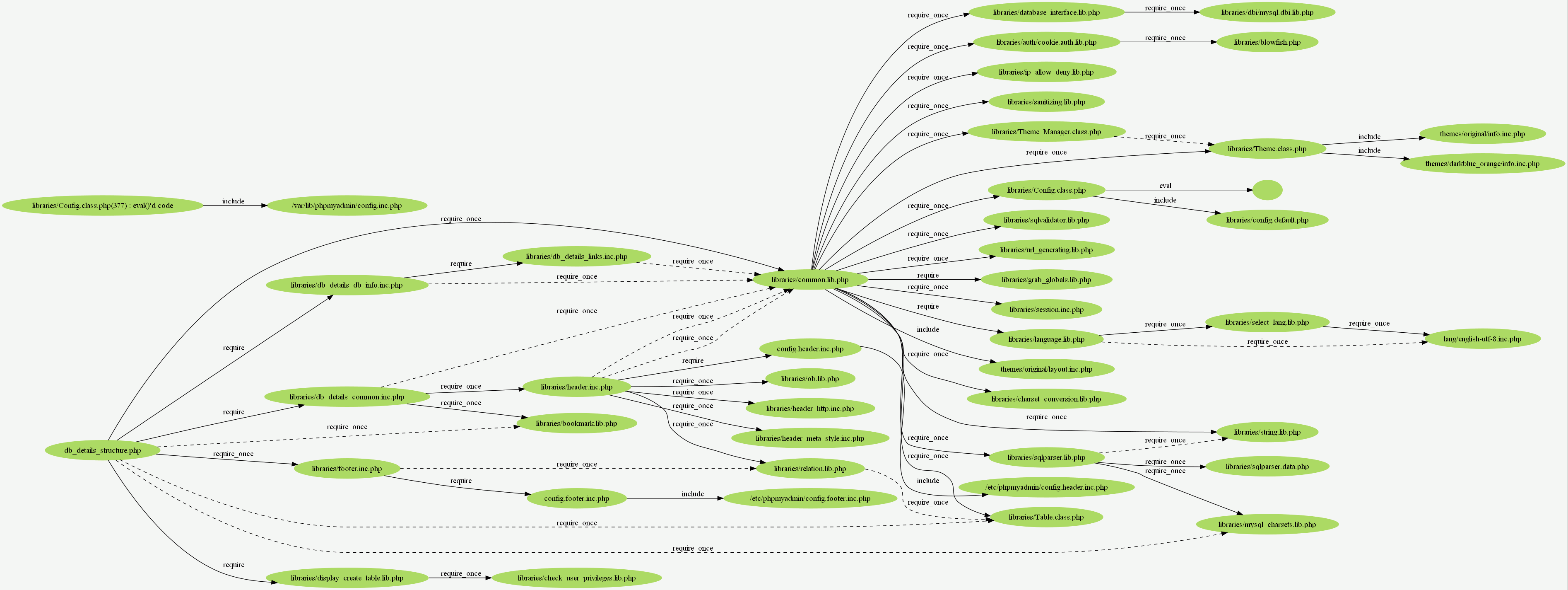

phpMyAdmin 2.9.1.1
http://www.phpmyadmin.net/

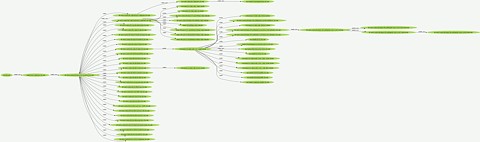

Symfony 1.1
http://www.symfony-project.org/

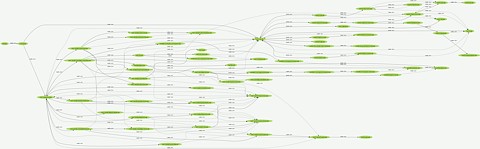

Zend Framework 1.5.2
http://framework.zend.com/
CakePHP
http://www.cakephp.org/

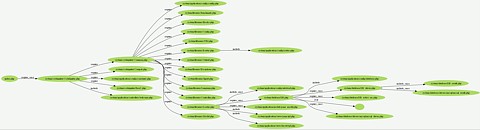

CodeIgniter
http://codeigniter.com/
Seagull Framework
http://seagullproject.org/
(Demian Turner)
